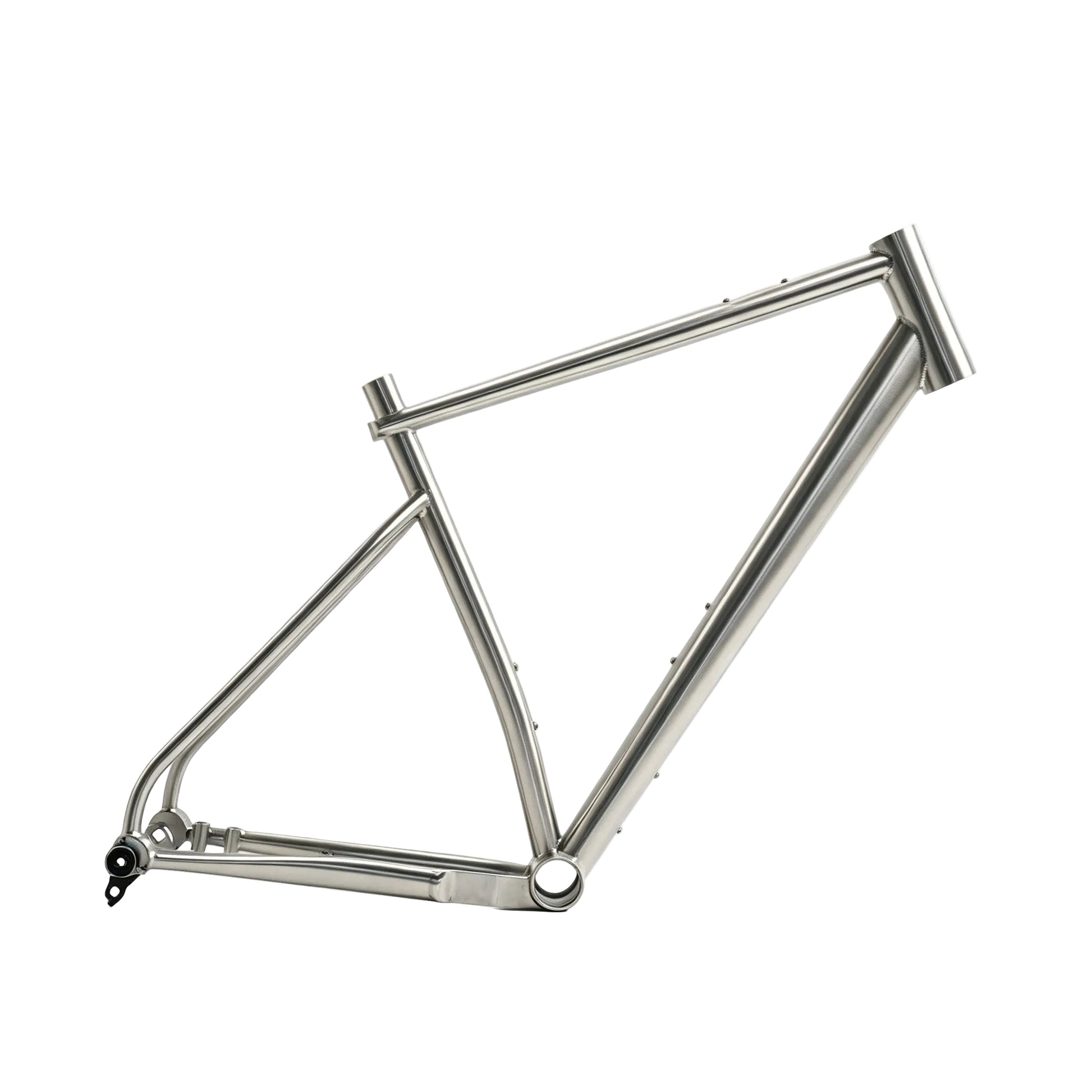

Titanium Gravel Bike Frame

• Material: Titanium 3Al/2.5V + 6Al/4V
• Weight: 2.05kg (sample)
• Finish: Brushed / Sandblasted

           Specifications

• Head Tube:IS52-IS52
• with Φ27.2 Seatpost
• UDH 142*12 Thru-Axle Derailleur Hanger
• Max Tire Clearance: 700C x 60mm
• 48T Chainring
• T47 BB Shell
• Flat Mount 160/180mm Disc Brake
• Internal Cable Routing for Disc Brake Cables+Wireless Electronic Shifting

          Tube Design

• Top Tube: 38.1*0.9-34.9mm Tapered + Flattened
• Down Tube: 50.8*0.9mm + Reverse Flattened
• Seat Stays: 19*0.9-16mm Tapered Tubes
• Chain Stays: 25.4*0.9-19mm Tapered Tubes

• Custom Titanium Frame Quote Form Download
