Carbon Suspension Corrected Gravel Fork SC-MGV30
Carbon Suspension Corrected Gravel Fork SC-MGV30
The Carbon Suspension Corrected Gravel Fork SC-MGV30 is designed for modern gravel and adventure builds, offering extra tire clearance and an adjustable flip-chip rake to fine-tune handling on rough terrain.
Highlights
- Suspension corrected axle-to-crown: 415mm / 425mm
- Adjustable rake via flip-chip: 49mm or 54mm
- Max tire clearance: 700 x 60c
- Compatible with external or full internal cable routing (replaceable ports)
- Flat mount disc, 160mm / 180mm rotor compatible

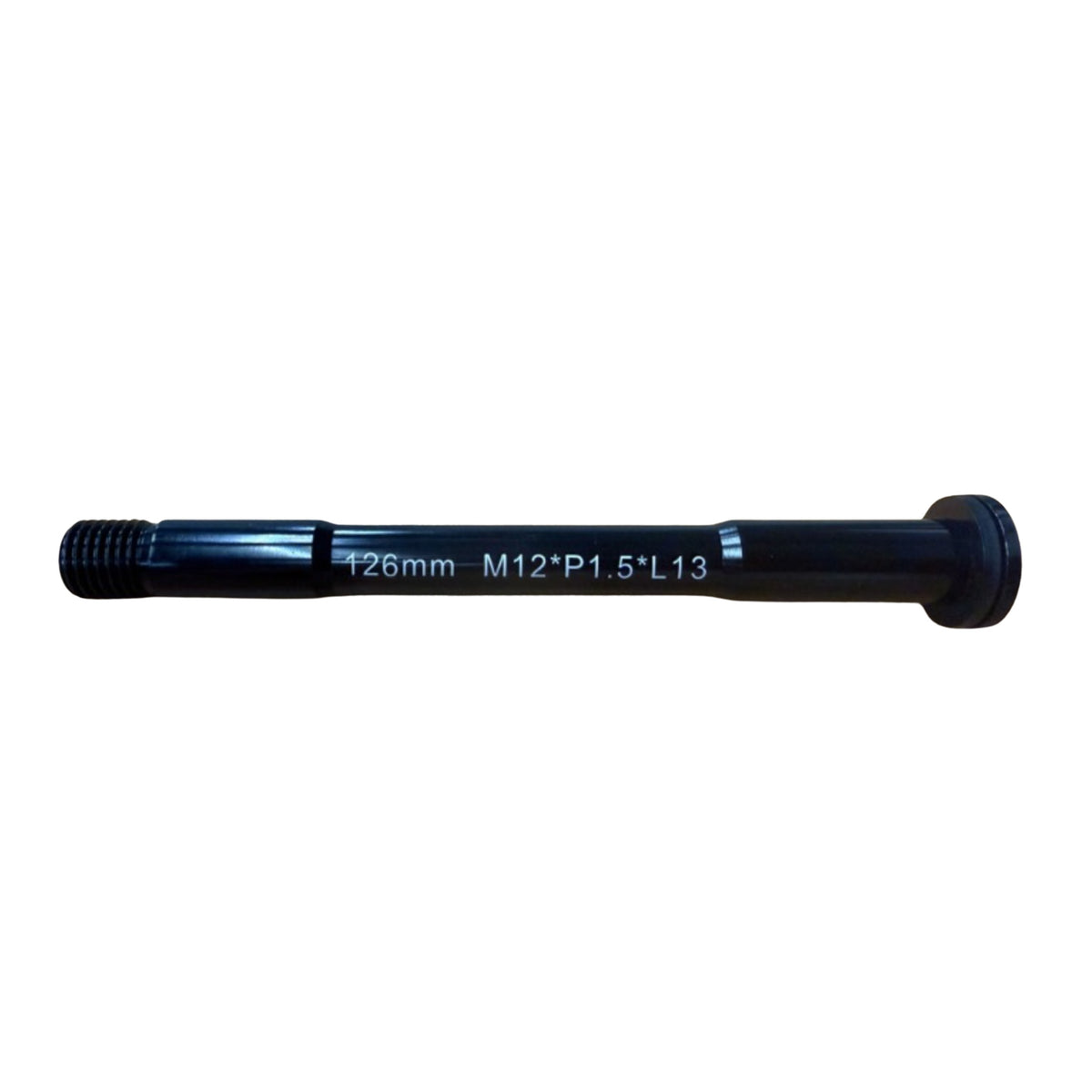

- 12 x 100mm thru-axle
Specifications
| Material | Toray T700 carbon fiber |
| Finish | UD matte black |
| Steerer | 1-1/8" to 1-1/2" tapered, 350mm |
| Crown width | 56mm |
| Axle to Crown | 415mm / 425mm |
| Rake / Offset | 49mm / 54mm (flip-chip) |
| Max tire clearance | 700 x 60c |
| Brake mount | Flat mount, 160 / 180mm |
| Axle | 12 x 100mm thru-axle |
| Weight (Race) | 525g ±15g |
| Weight (Wild) | 545g ±15g |
| Routing | External or full internal |
| Test standard | ISO 4210 (test force +15%) |
| Warranty | 2 years |

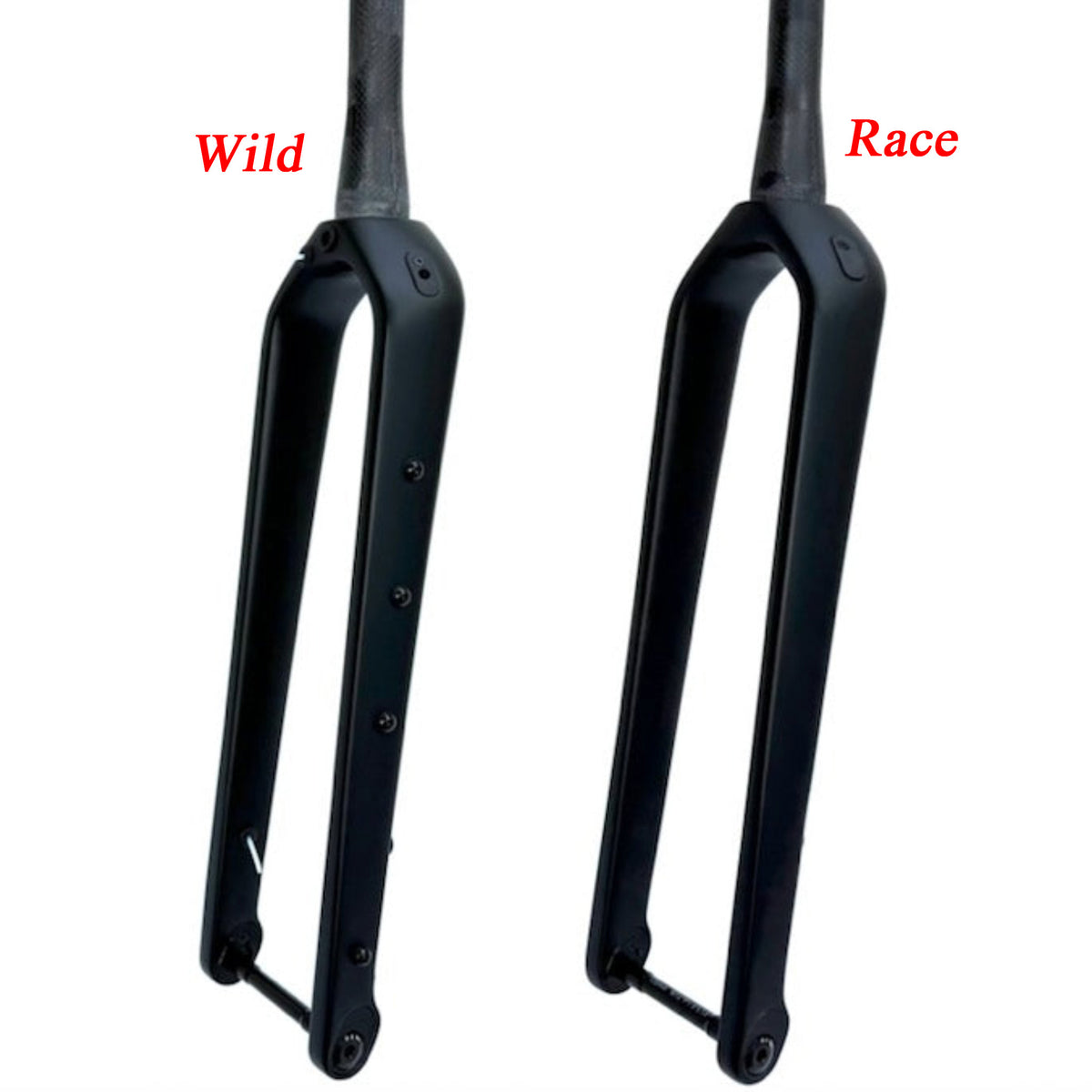

Versions
- Race – clean, no extra mounting holes (525g ±15g)
- Wild – fender mounts, triple cage mounts and dynamo routing holes (545g ±15g)
